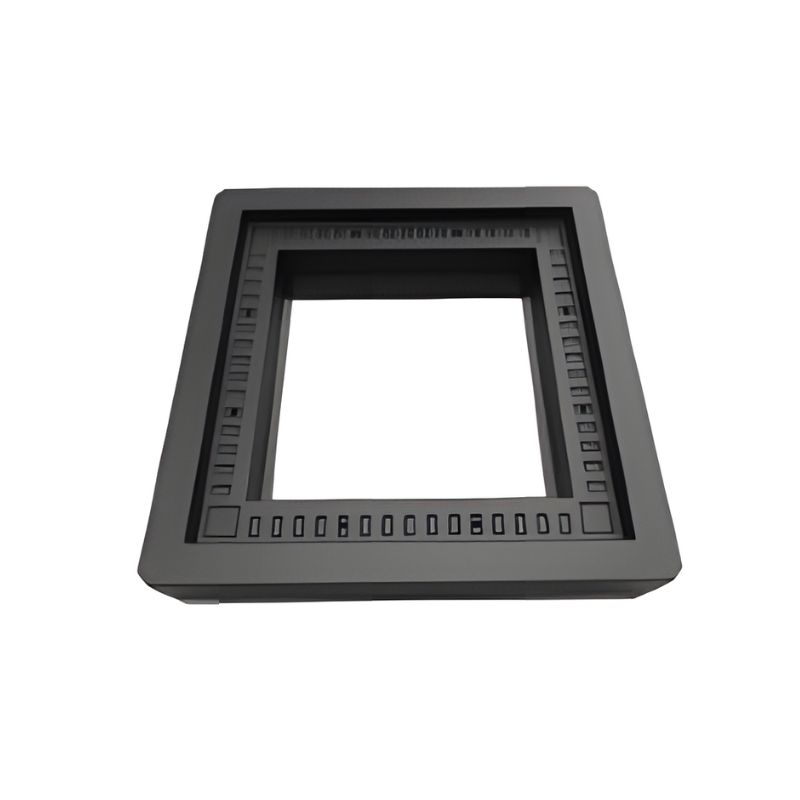

  1. EcoLite Chambers
  2. EcoLite Chambers - Image 2
  3. EcoLite Chambers - Image 3

EcoLite Chambers

EcoLite is a modular structural access chamber system made from recycled polypropylene. Designed for underground installations, it supports load ratings from C250 to F900 and offers a lightweight, durable alternative to concrete chambers.

Categories: Tags: , , , Brand:
Download Product Brochure
Ask About This Product

EcoLite Chamber System



The EcoLite Chamber System by Pennine Manufacturing Ltd is a versatile, modular solution for underground access in water utilities and ducted networks. Manufactured from recycled polypropylene, EcoLite chambers are lightweight, chemically resistant, and capable of supporting high load ratings — from C250 up to F900, depending on size.

Key Features:

  • Available in depths of 25mm, 50mm, and 150mm
  • Interlocking rectangular rings for easy stacking
  • No concrete backfill required for most applications
  • Resistant to acids, alkalis, and chemical erosion
  • Can be installed manually without lifting equipment
  • Suitable for meter boxes, hydrant boxes, and inspection chambers

Installation Overview:

  1. Excavate to required dimensions, allowing for cover, frame, and mortar bed
  2. Pour concrete or dry mix base
  3. Lower and align chamber sections
  4. Fit access cover using mortar or grout
  5. Backfill with compacted material
  6. Finish surface up to chamber edge

EcoLite chambers have been tested by Lloyds British to BSEN 124:1994, achieving load ratings up to 96 tonnes for F900 class.



Variations Table



Code Product Description Pack Qty Weight (kg) Length (mm) Width (mm) Height (mm) Volume (m³) Pallet Dimensions (mm) Units/Pallet
ME151525 150 × 150 × 25mm Ecolite 1 0.4 230 230 25 0.0013 1200 × 1000 × 1200 800
ME151550 150 × 150 × 50mm Ecolite 1 0.68 230 230 50 0.0026 1200 × 1000 × 1200 400
ME1515150 150 × 150 × 150mm Ecolite 1 1.8 230 230 150 0.0079 1200 × 1000 × 1100 120
ME1717100 170 × 170 × 100mm Ecolite 1 1.95 300 300 100 0.009 1200 × 1000 × 1200 120
ME1717150 170 × 170 × 150mm Ecolite 1 2.8 300 300 150 0.0135 1200 × 1000 × 1100 72
ME2323100 230 × 230 × 100mm Ecolite 1 2.52 360 360 100 0.013 1200 × 1080 × 1200 90
ME2323150 230 × 230 × 150mm Ecolite 1 3.73 360 360 150 0.0194 1200 × 1080 × 1100 54
MEBASE Universal Ecolite Base (170 & 230mm) 1 2.3 360 360 40 0.0052 1200 × 1080 × 1000 180
MEBASEX TopHat-225mm / Base + Central Hole 1 2.0 360 360 40 0.0052 1200 × 1080 × 1000 180
ME3823150 380 × 230 × 150mm Ecolite 1 4.95 510 360 150 0.0275 1230 × 1080 × 2000 105
ME432825 430 × 280 × 25mm Ecolite 1 1.15 560 410 25 0.0057 1230 × 1000 × 1200 250
ME432850 430 × 280 × 50mm Ecolite 1 1.93 560 410 50 0.0115 1230 × 1000 × 1200 125
ME432875 430 × 280 × 75mm Ecolite 1 2.59 560 410 75 0.0172 1230 × 1000 × 2075 170
ME4328100 430 × 280 × 100mm Ecolite 1 3.57 560 410 100 0.023 1230 × 1000 × 2000 120
ME4328150 430 × 280 × 150mm Ecolite 1 5.1 560 410 150 0.0344 1230 × 1000 × 2000 75
ME4328B 430 × 280 × 40mm base 1 2.5 580 430 40 0.01 1290 × 1010 × 1000 100
ME4328B1 430 × 280 × 40mm base – central hole 1 2.5 580 430 40 0.01 1290 × 1010 × 1000 100
ME4328B2 430 × 280 × 40mm base – offset hole 1 2.5 580 430 40 0.01 1290 × 1010 × 1000 100
ME4328B3 430 × 280 × 40mm base – rectangular hole 1 2.5 580 430 40 0.01 1290 × 1010 × 1000 100
ME3030150 300 × 300 × 150mm Ecolite 1 4.3 430 430 150 0.0277 1290 × 1020 × 2000 84
ME4545150 450 × 450 × 150mm Ecolite 1 5.9 580 580 150 0.0505 1160 × 1160 × 2000 48
ME6045150 600 × 450 × 150mm Ecolite 1 8.62 780 630 150 0.0737 1260 × 1090 × 2000 32
ME6060150 600 × 600 × 150mm Ecolite 1 10.2 780 780 150 0.0913 1240 × 1090 × 2000 22
ME6868150 675 × 675 × 150mm Ecolite 1 11.48 860 860 150 0.1109 1240 × 1090 × 2000 18
ME7545150 750 × 450 × 150mm Ecolite 1 9.24 930 630 150 0.0879 1260 × 1000 × 2000 32
ME7560150 750 × 600 × 150mm Ecolite 1 11.16 780 930 150 0.1088 1240 × 1090 × 2000 20
ME7568150 750 × 675 × 150mm Ecolite 1 11.8 930 860 150 0.12 1200 × 1000 × 2000 16
ME7575150 750 × 750 × 150mm Ecolite 1 12.12 930 930 150 0.1297 1240 × 1000 × 2000 16
