Line Drainage

EasyFlow is a lightweight yet robust modular drainage system made from recycled plastic. With A15 load-bearing capacity and efficient flow design, it’s ideal for domestic and light commercial applications.

Full Description

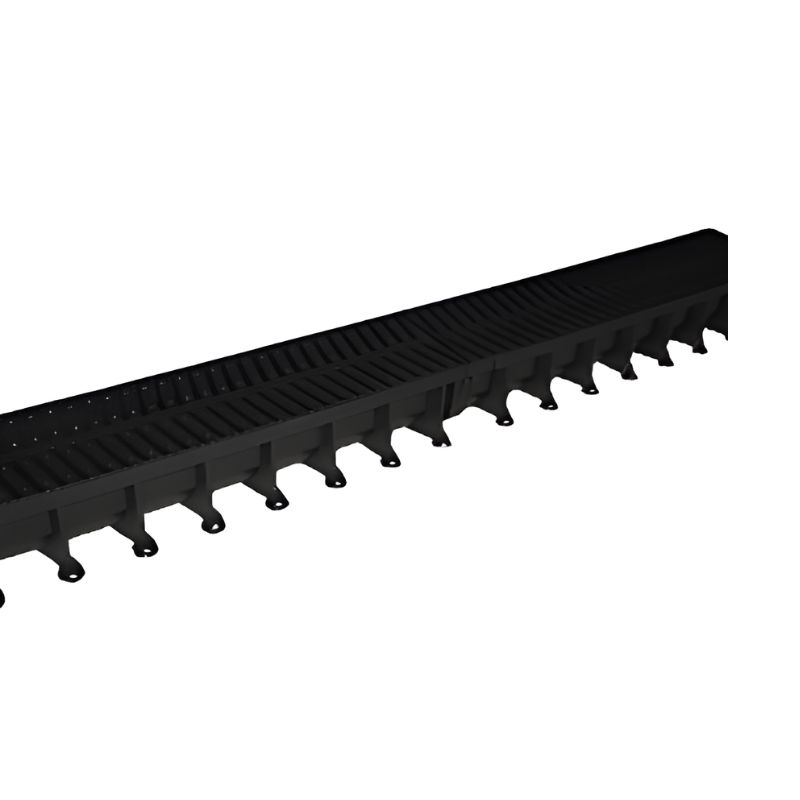

EasyFlow is a strong, modular drainage system designed for quick assembly and reliable performance across a wide range of applications. Manufactured in the UK by Pennine Manufacturing Ltd to ISO9001 standards, EasyFlow is made from recycled plastics and is 100% recyclable at end of use.

The system features a self-cleansing channel design that enhances flow velocity and reduces blockages. It includes a variety of accessories such as 110mm adaptors, end caps with knockouts, and 4-way connectors with vertical outlets. Each channel is made up of two 500mm sections (totaling 1000mm), minimizing the need for cutting. If cutting is required, it can be done easily with a jigsaw.

Key Features:

  • Size: 1000 × 125 × 78mm
  • A15 load-bearing capacity
  • 8 knockouts per metre
  • Feet for levelling and anti-floating in concrete/mortar
  • No tools required for assembly (hammer needed for knockouts)
  • 10-year guarantee
  • Eco-friendly and fully recyclable

Variations Table

Code Product Name Pack Qty Pack Weight (Kg) Pack Dimensions (mm) Pack Volume (m³) Pallet Dimensions (mm) Units per Pallet

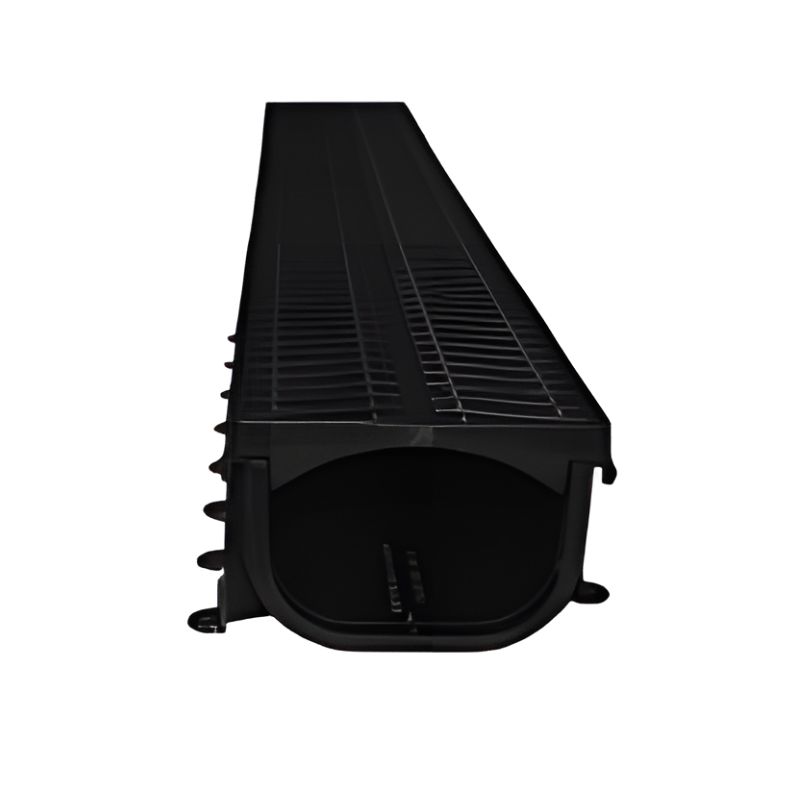

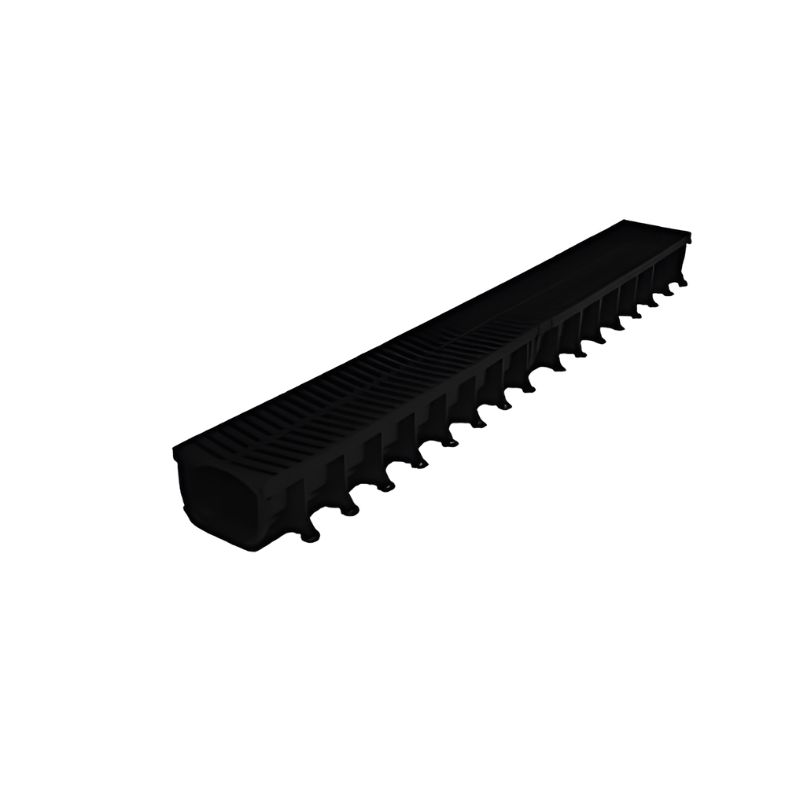

D1001 EasyFlow 1000mm Channel Drain (Black) 1 1.35 1020 × 125 × 78 0.0099 1250 × 1020 × 1140 120

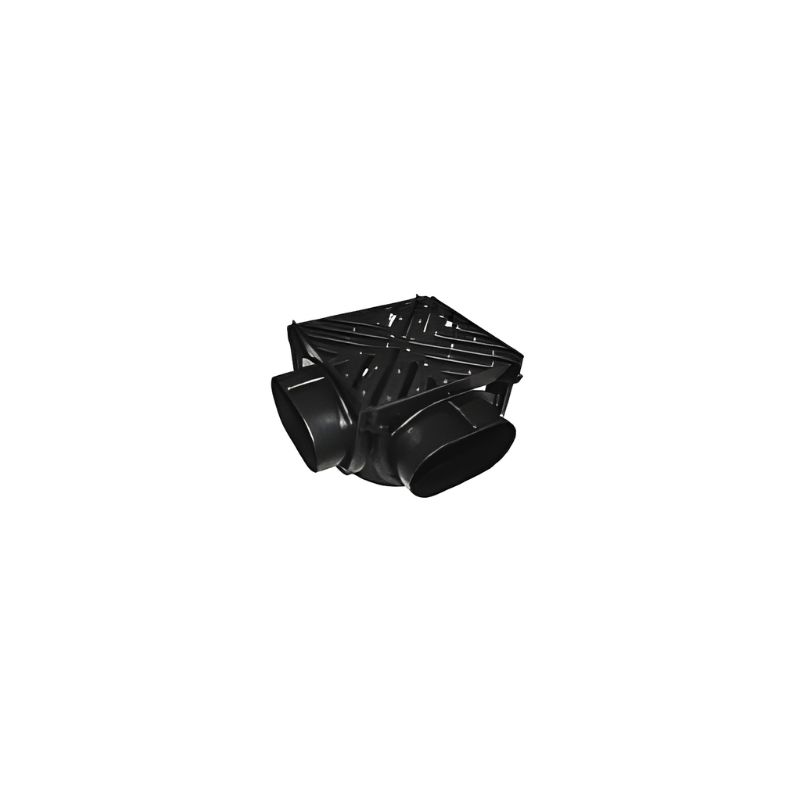

D1011 EasyFlow 4-way + 2 End Caps 1 0.15 130 × 120 × 100 0.0016 1200 × 1040 × 1000 640

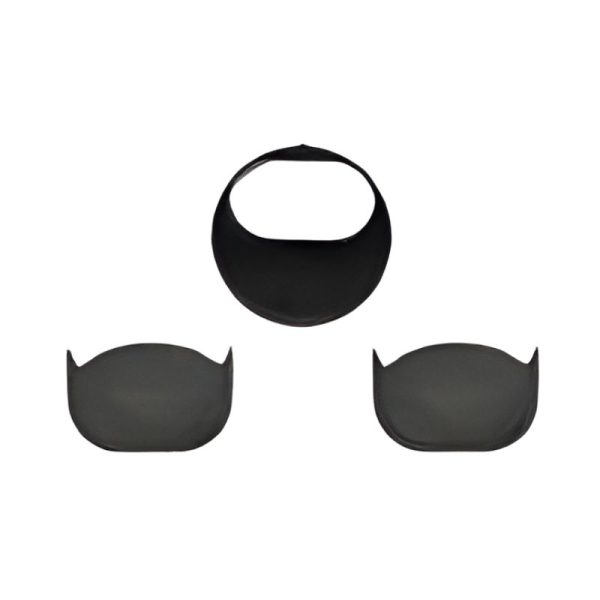

D1031 EasyFlow End Cap with Knockout 10 0.18 100 × 75 × 200 0.0015 1200 × 1000 × 950 600

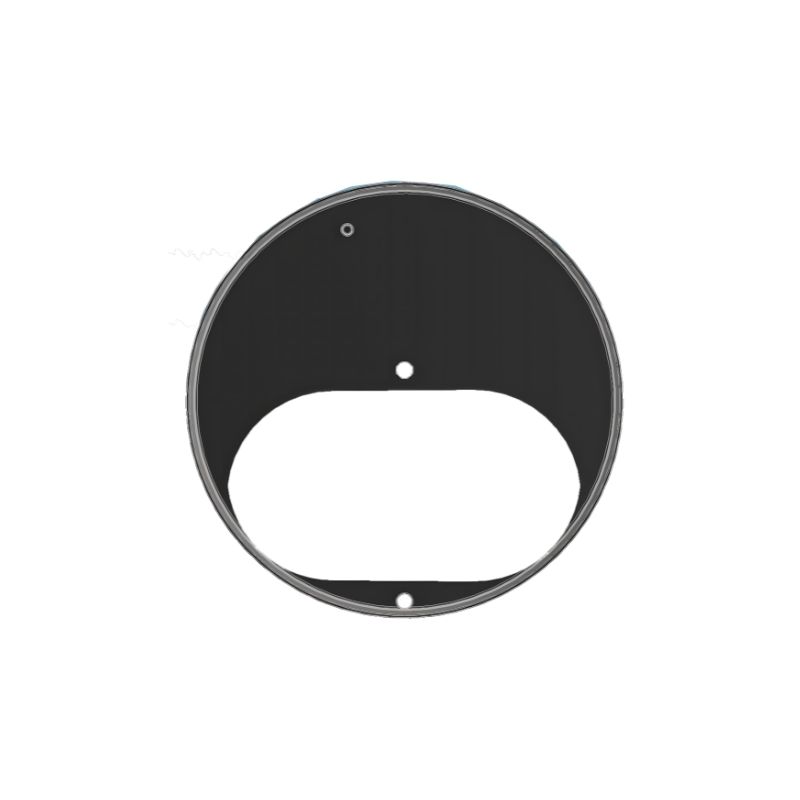

D1032 EasyFlow 110mm Adapter 10 0.27 115 × 115 × 400 0.0053 1200 × 1000 × 1090 216
D1033 EasyFlow 110mm Adapter + 2 End Caps 1 0.06 115 × 115 × 30 0.0004 1200 × 1000 × 1090 216
D1041 EasyFlow GaragePack (3m + endcaps + adapter) 1 4.11 235 × 285 × 515 0.0345 1200 × 1000 × 1200 34
