SupaStack Rectangular Risers

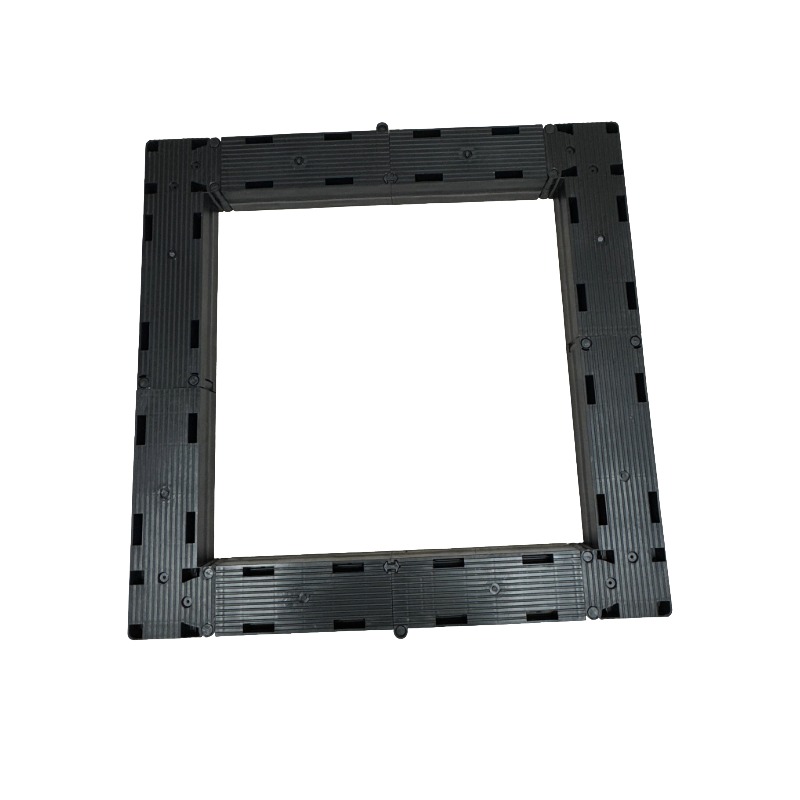

  1. SupaStack Rectangular Risers

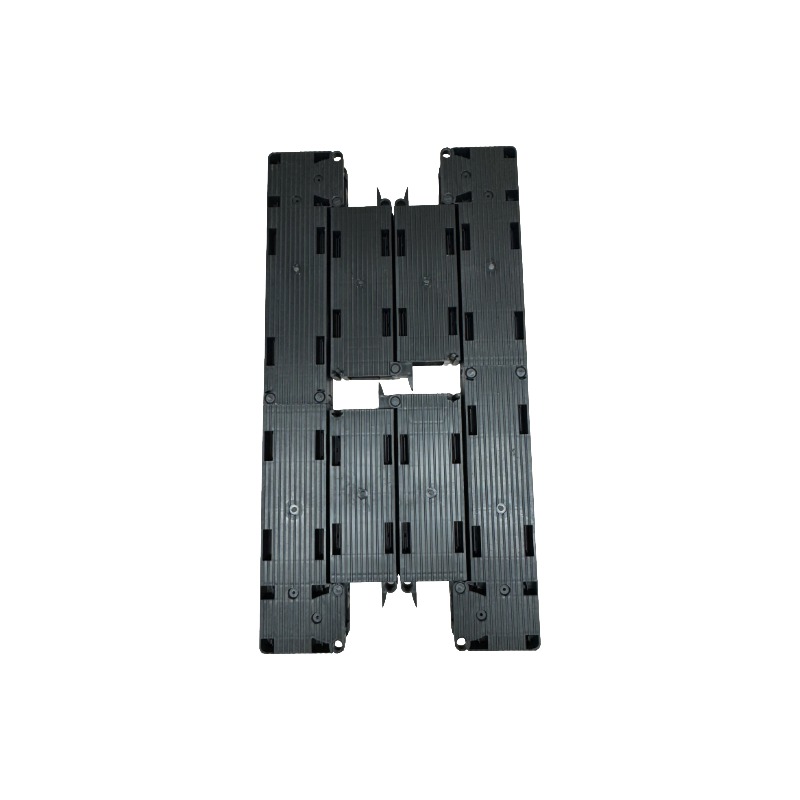

  2. SupaStack Rectangular Risers - Image 2

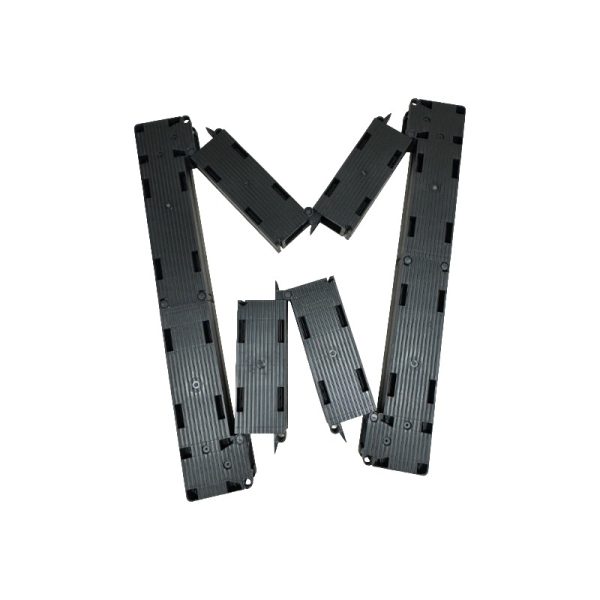

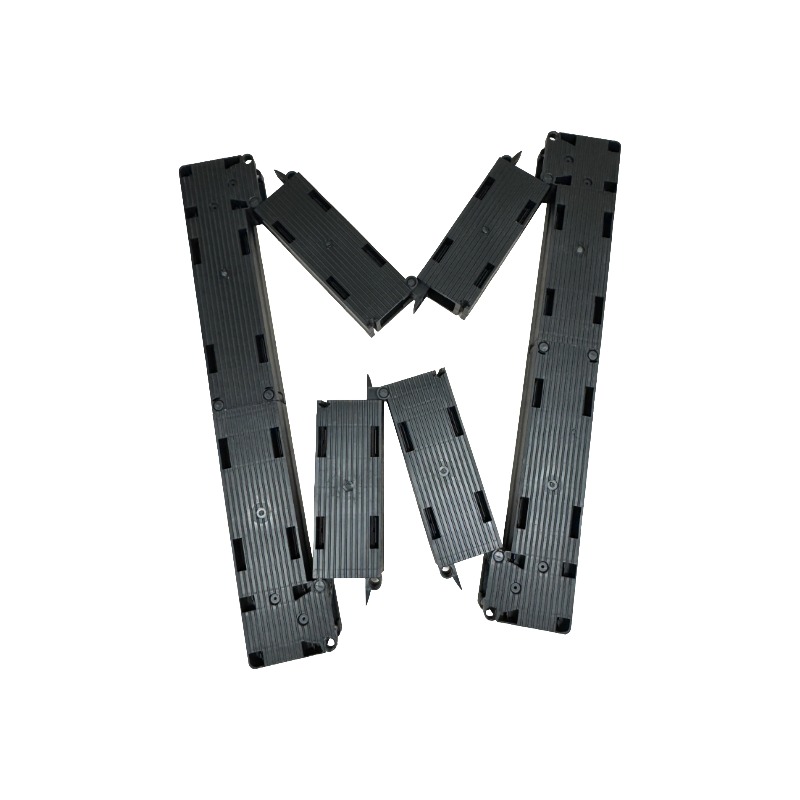

  3. SupaStack Rectangular Risers - Image 3

SupaStack Rectangular Risers

SupaStack Rectangular Risers are modular seating rings designed to adjust chamber height. Available in 65mm and 150mm heights, they are lightweight, durable, and compatible with D400, E600, and F900 load ratings.

Categories: Tags: , , , , Brand:
Download Product Brochure
Ask About This Product

SupaStack Rectangular Risers



The SupaStack Rectangular Risers by Pennine Manufacturing Ltd are modular seating rings (also known as adjusting rings or raising pieces) used to fine-tune the height of access chambers. Manufactured in the UK from recycled polypropylene, these risers are available in D400, E600, and F900 load classes and are tested to BS EN124 standards.

  • Made from recycled polypropylene and fully recyclable
  • Lightweight — one person can carry up to 4 risers
  • Virtually no breakages — reduces disposal and replacement costs
  • Flat top and base — minimizes mortar usage
  • Clip-together design for secure stacking
  • Surface geometry ensures secure mortar bonding
  • Compact — over 100 of the 600×600×65mm risers fit in a small transit van
  • Available in 65mm and 150mm heights for flexible depth configurations
  • Manufactured to ISO 9001 Quality Standards

Common Sizes Include: 600×600mm, 675×675mm, 750×600mm, 750×750mm, 900×900mm, 1200×675mm



Variations Table



Code Product Description Pack Qty Weight (kg) Length (mm) Width (mm) Height (mm) Volume (m³) Pallet Dimensions (mm) Units/Pallet
MSR6060 600 × 600 × 65mm SupaStack D400 1 4.48 800 420 65 0.0218 1260 × 1000 × 1160 54
MSR6868 675 × 675 × 65mm SupaStack D400 1 5.12 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR7560 750 × 600 × 65mm SupaStack D400 1 5.02 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR7575 750 × 750 × 65mm SupaStack D400 1 5.66 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR6060E 600 × 600 × 65mm SupaStack E600 1 6.08 800 420 65 0.0218 1260 × 1000 × 2150 54
MSR6868E 675 × 675 × 65mm SupaStack E600 1 6.72 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR7560E 750 × 600 × 65mm SupaStack E600 1 6.62 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR7575E 750 × 750 × 65mm SupaStack E600 1 7.26 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR9090E 900 × 900 × 65mm SupaStack E600 1 6.64 1100 420 65 0.03 1260 × 1100 × 1160 45
MSR12068E 1200 × 675 × 65mm SupaStack E600 1 6.96 1400 420 65 0.0382 1260 × 1475 × 1160 45
MSR6060F 600 × 600 × 65mm SupaStack F900 1 7.68 800 420 65 0.0218 1260 × 1000 × 2150 54
MSR6868F 675 × 675 × 65mm SupaStack F900 1 6.72 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR7560F 750 × 600 × 65mm SupaStack F900 1 6.62 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR7575F 750 × 750 × 65mm SupaStack F900 1 7.26 950 420 65 0.0259 1260 × 1000 × 1160 45
MSR9090F 900 × 900 × 65mm SupaStack F900 1 8.24 1100 420 65 0.03 1260 × 1100 × 1160 45
MSR12068F 1200 × 675 × 65mm SupaStack F900 1 8.56 1400 420 65 0.0382 1260 × 1475 × 1160 45
MSU6060 600 × 600 × 150mm SupaStack D400 1 9.87 800 420 154 0.0517 1260 × 1000 × 2070 42
MSU6868 675 × 675 × 150mm SupaStack D400 1 9.68 950 420 154 0.0614 1260 × 1000 × 2070 36
MSU7560 750 × 600 × 150mm SupaStack D400 1 9.3 950 420 154 0.0614 1260 × 1000 × 2070 36
MSU7575 750 × 750 × 150mm SupaStack D400 1 10.76 950 420 154 0.0614 1260 × 1000 × 2070 36
MSU9090 900 × 900 × 150mm SupaStack D400 1 12.2 1100 420 154 0.0711 1260 × 1100 × 2070 36
MSU12068 1200 × 675 × 150mm SupaStack E600 1 12.17 1400 420 154 0.0906 1260 × 1400 × 2070 36
