Verge Trims

A universal dry verge system made from durable, recyclable polypropylene, designed for fast installation and long-term roof protection against weather, insects, and water ingress.

Pennine Dry Verge System – Verge Trim, Ridge Caps & Trim Fillers



The Pennine Dry Verge System is a complete roofing accessory solution designed for durability, ease of installation, and sustainability. Manufactured in the UK to ISO 9001 Quality Standards, this system includes:

Product Components

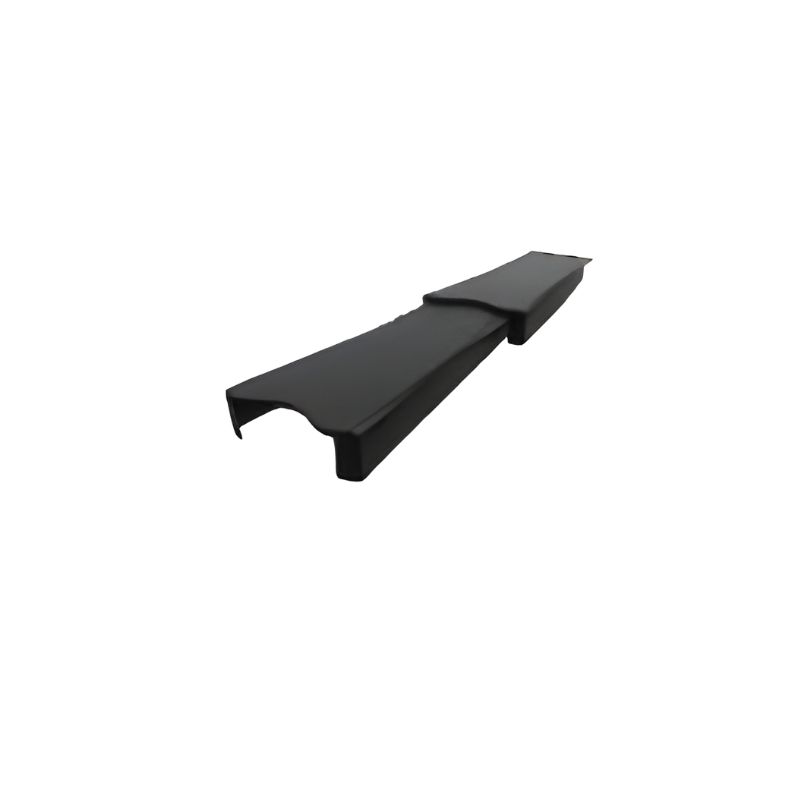

  • Verge Trim: Adjustable repeat from 225mm to 345mm. Universal design—no need for left or right-handed pieces.

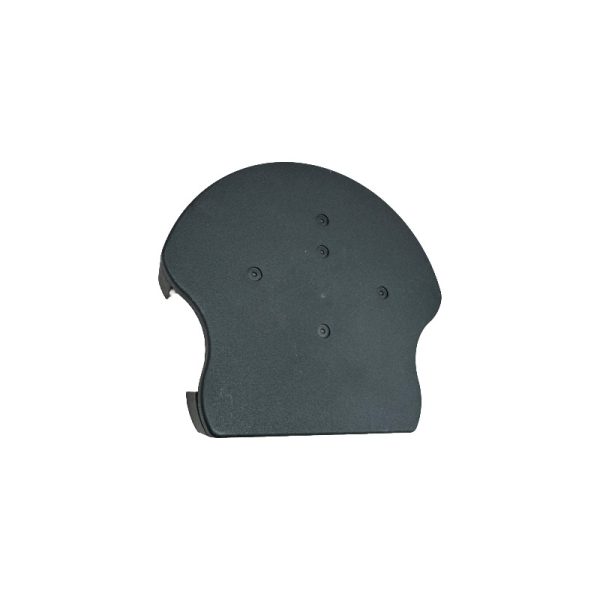

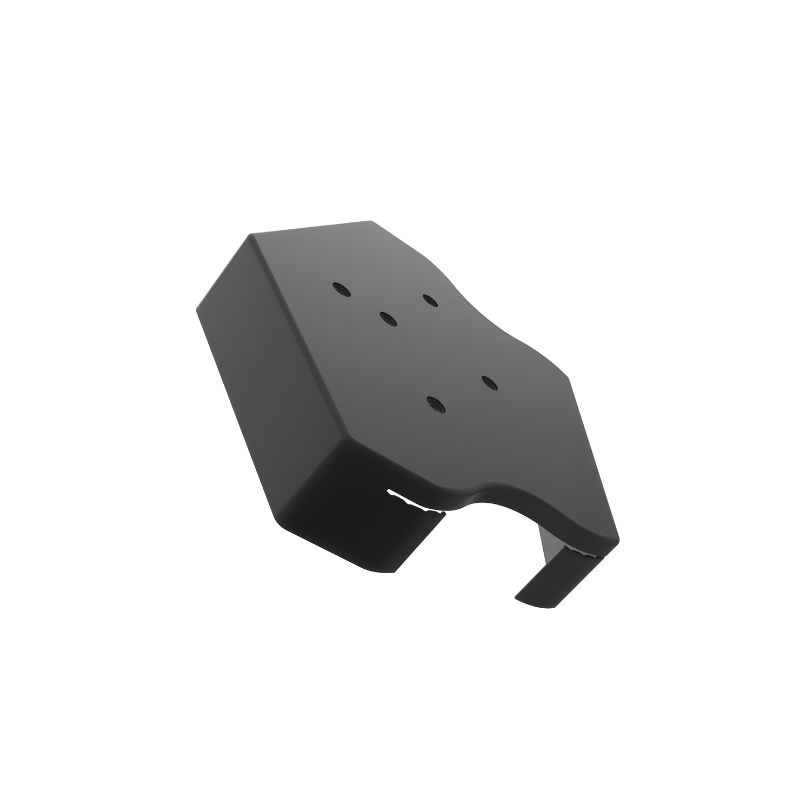

  • Ridge Cap: Suitable for roof slopes from 0° to 60°. Available in Curved and Angled styles.

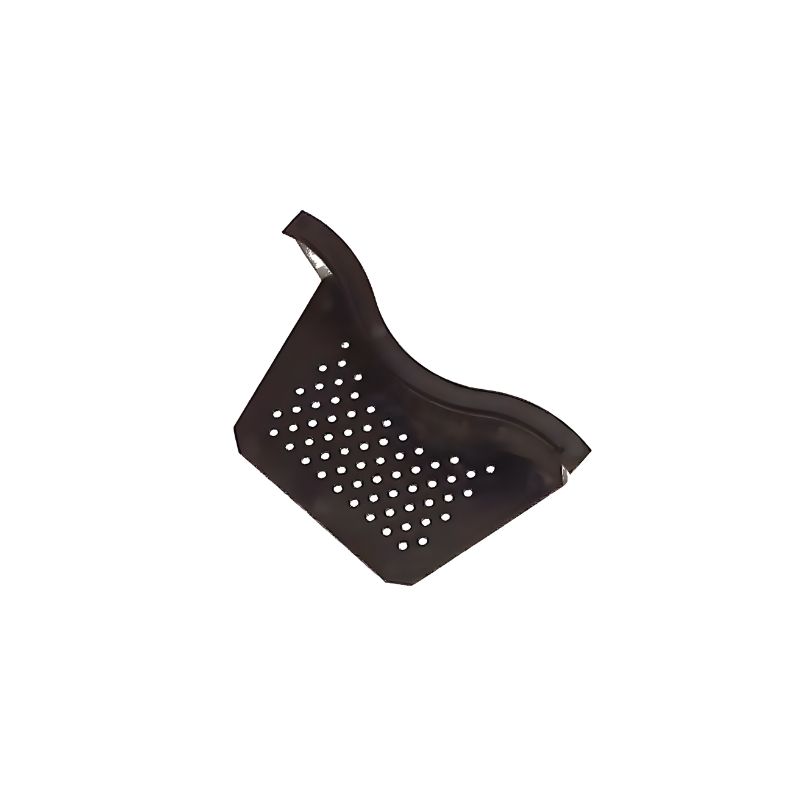

  • Verge Trim Filler: Seals off the Verge Trim assembly at the eaves for a clean finish.

Material & Design

  • Crafted from durable polypropylene, all components are lightweight and robust.
  • Sleek and elegant in appearance.
  • Flexible for rapid installation.

Performance & Protection

  • Excellent holding down properties to prevent tile dislodgement.
  • Keeps the verge dry and protects against insect infestation and water ingress.
  • UV stable for long-term performance.
  • Guaranteed for 25 years.

Sustainability

  • Made from recycled plastic and fully recyclable at end of use.

Colour Options

Available in Black (X), Grey/Charcoal (G), Brown (B), Terracotta (T) to match various roof styles.



Product Variations



Code Product Pack Qty Pack Weight (kg) Length (mm) Width (mm) Height (mm) Volume (m³) Pallet Length (mm) Pallet Width (mm) Pallet Height (mm) Number Per Pallet
RS301G Pennine Verge Trim Charcoal 50 10.6 400 300 790 0.0948 1200 1000 1850 20
RS301B Pennine Verge Trim Brown 50 10.6 400 300 790 0.0948 1200 1000 1850 20
RS301T Pennine Verge Trim Terracotta 50 10.6 400 300 790 0.0948 1200 1000 1850 20
RS301X Pennine Verge Trim Black 50 10.6 400 300 790 0.0948 1200 1000 1850 20
RS311G Pennine Verge Trim Filler Charcoal 20 0.88 253 155 110 0.0043 1240 1020 1190 288
RS311B Pennine Verge Trim Filler Brown 20 0.88 253 155 110 0.0043 1240 1020 1190 288
RS311T Pennine Verge Trim Filler Terracotta 20 0.88 253 155 110 0.0043 1240 1020 1190 288
RS311X Pennine Verge Trim Filler Black 20 0.88 253 155 110 0.0043 1240 1020 1190 288
RS321G Pennine Verge Curved Ridge Cap Charcoal 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS321B Pennine Verge Curved Ridge Cap Brown 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS321T Pennine Verge Curved Ridge Cap Terracotta 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS321X Pennine Verge Curved Ridge Cap Black 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS341G Pennine Verge Angled Ridge Cap Charcoal 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS341B Pennine Verge Angled Ridge Cap Brown 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS341T Pennine Verge Angled Ridge Cap Terracotta 10 2.35 302 290 290 0.0254 1200 1000 1100 36
RS341X Pennine Verge Angled Ridge Cap Black 10 2.35 302 290 290 0.0254 1200 1000 1100 36
