EcoPlus Chamber System

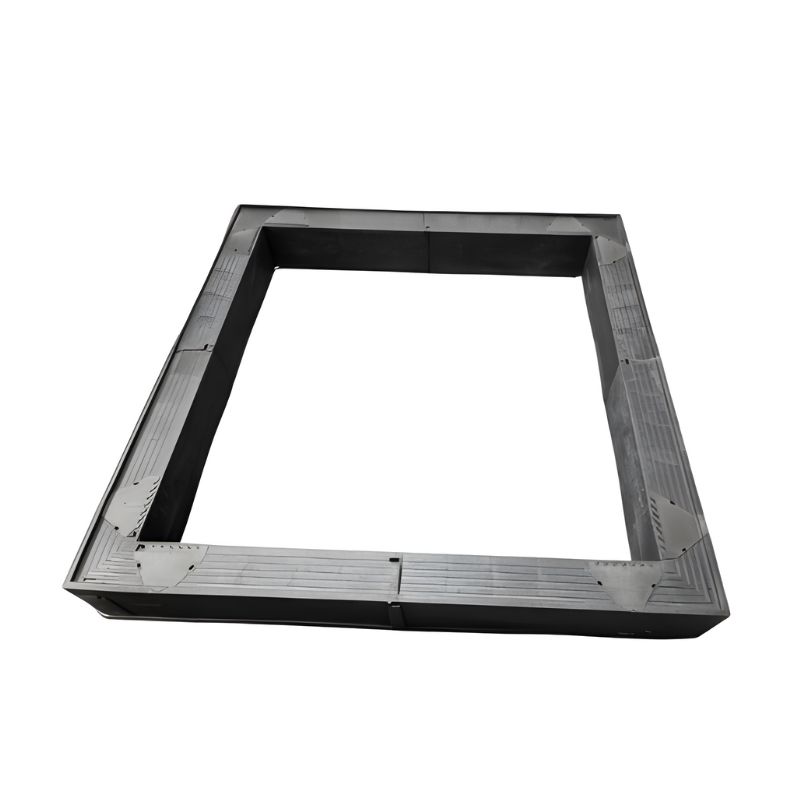

The EcoPlus Chamber System by Pennine Manufacturing Ltd is a high-performance, modular solution for underground access in water utilities and ducted networks. Made in the UK from recycled polypropylene , EcoPlus chambers are lightweight, chemically resistant, and capable of supporting D400 load ratings .

Key Features:

• Available in 150mm deep interlocking rings
• Lightweight construction allows manual handling
• Eliminates the need for lifting equipment
• Resistant to acids, alkalis, and chemical erosion
• No concrete backfill required for most applications
• Can be fitted with ladders, step irons, bearer bars, and other chamber furniture

Applications:

• Suitable for footway and highway projects
• Ideal for inspection and maintenance access chambers

Installation Overview

1. Excavate to required dimensions, allowing for cover, frame, and mortar bed
2. Pour concrete, dry mix, or compacted stone base
3. Lower and align chamber sections
4. Fit access cover using mortar, grout, or resin
5. Backfill with compacted material or concrete
6. Finish surface up to chamber edge

Note: For chambers not surrounded by concrete, reinforcement may be required. Struts must be used for wall lengths of 600mm and above during backfilling.
