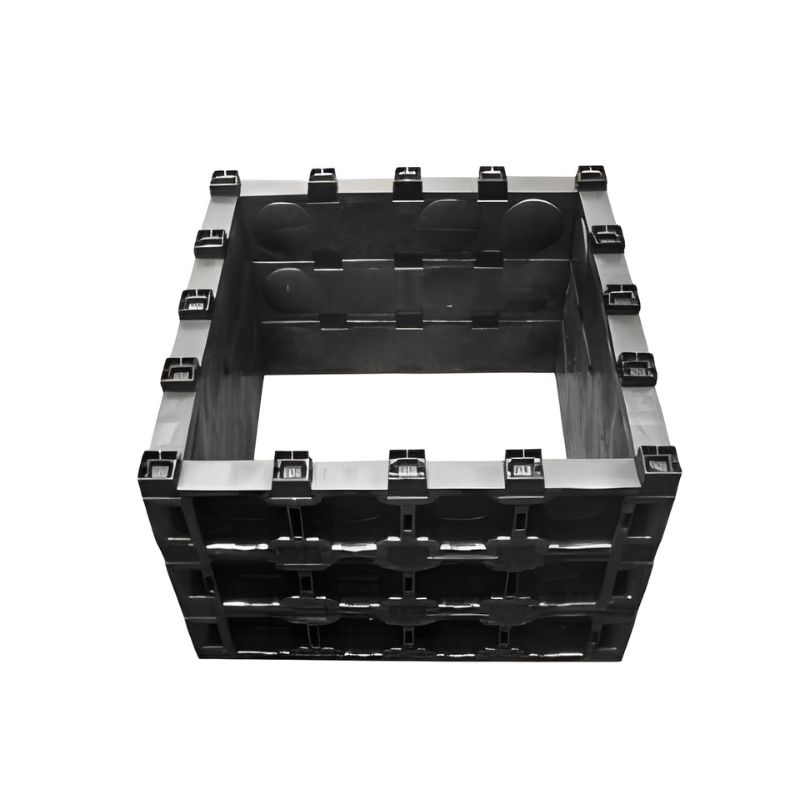

  1. Titan Chambers

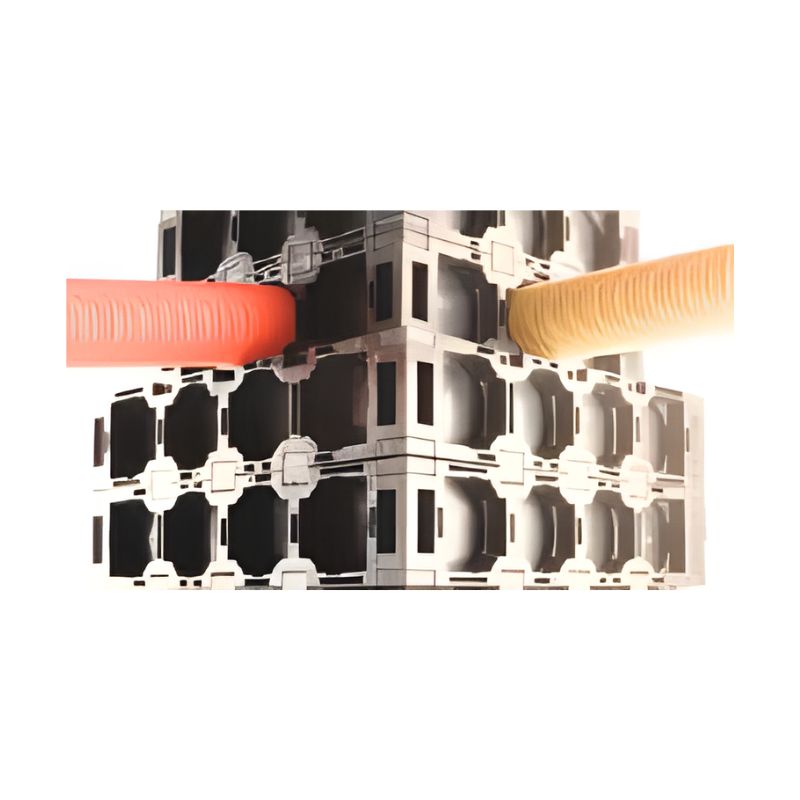

  2. Titan Chambers - Image 2

Titan Chambers

Titan is a modular duct access chamber system made from recycled polypropylene, designed for high-load applications up to D400. Lightweight, tool-free assembly, and suitable for utilities, highways, and rail infrastructure.

Categories: Tags: , , , , Brand:
Download Product Brochure
Ask About This Product

Titan Chamber System



The Titan Chamber System by Pennine Manufacturing Ltd is a robust, modular solution for underground duct access. Manufactured in the UK to ISO 9001 standards, Titan chambers are made from recycled polypropylene, offering both environmental sustainability and structural integrity.

Titan chambers are suitable for a wide range of applications including:

  • Land drainage
  • Railway and motorway communications
  • Street and airport lighting
  • Gas, water, and electric utilities

Key features:

  • Flat-pack or assembled delivery
  • Lightweight and easy to handle
  • Tool-free on-site assembly
  • Knockouts for 110mm pipes, with flexibility for other sizes
  • D400 load rating (40 tonnes), tested and certified by Lloyds British

Installation highlights:

  • Constructed using 150mm deep sections
  • 100mm concrete base (C30 dry mix) recommended
  • Backfill with compacted MOT Type 1 in 300mm layers
  • Chambers larger than 600mm square should be braced for 24 hours
  • Height adjustment possible using galvanized steel frames with composite lids

Titan chambers passed rigorous testing to BSEN124 D400 standards, including sidewall deflection and compressive load tests, without requiring concrete backfill.

Variations Table



Code Product Pack Qty Weight (kg) Length (mm) Width (mm) Height (mm) Volume (m³) Pallet Dimensions (mm) Units/Pallet
MSTACK30 300 Titan 1 1.35 400 150 50 0.0030 1200 x 1050 x 930 315
MSTACK45 450 Titan 1 1.73 550 150 50 0.0041 1250 x 1050 x 930 240
MSTACK60 600 Titan 1 2.23 700 150 50 0.0053 1350 x 1050 x 930 210
MSTACK90 900 Titan 1 2.63 1000 150 50 0.0075 1200 x 1000 x 930 120
MT3030 300 × 300 × 150mm Titan Ring 1 5.38 400 400 150 0.0240 1200 x 1080 x 1800 84
MT4530 450 × 300 × 150mm Titan Ring 1 6.16 550 400 150 0.0330 1200 x 1100 x 2000 72
MT4545 450 × 450 × 150mm Titan Ring 1 6.93 550 550 150 0.0454 1200 x 1050 x 1850 42
MT6045 600 × 450 × 150mm Titan Ring 1 7.94 700 550 150 0.0578 1400 x 1050 x 1850 42
MT6060 600 × 600 × 150mm Titan Ring 1 8.94 700 700 150 0.0735 1320 x 1050 x 2000 22
MT9045 900 × 450 × 150mm Titan Ring 1 8.73 1000 550 150 0.0825 1200 x 1100 x 2000 28
MT9060 900 × 600 × 150mm Titan Ring 1 9.74 1000 700 150 0.1050 1200 x 1000 x 2000 20
MT9090 900 × 900 × 150mm Titan Ring 1 10.53 1000 1000 150 0.1500 1200 x 1000 x 2000 15
